5-146282-2
Manufacturer:
TE Connectivity
Mfr.Part #:
5-146282-2
Datasheet:
Description:

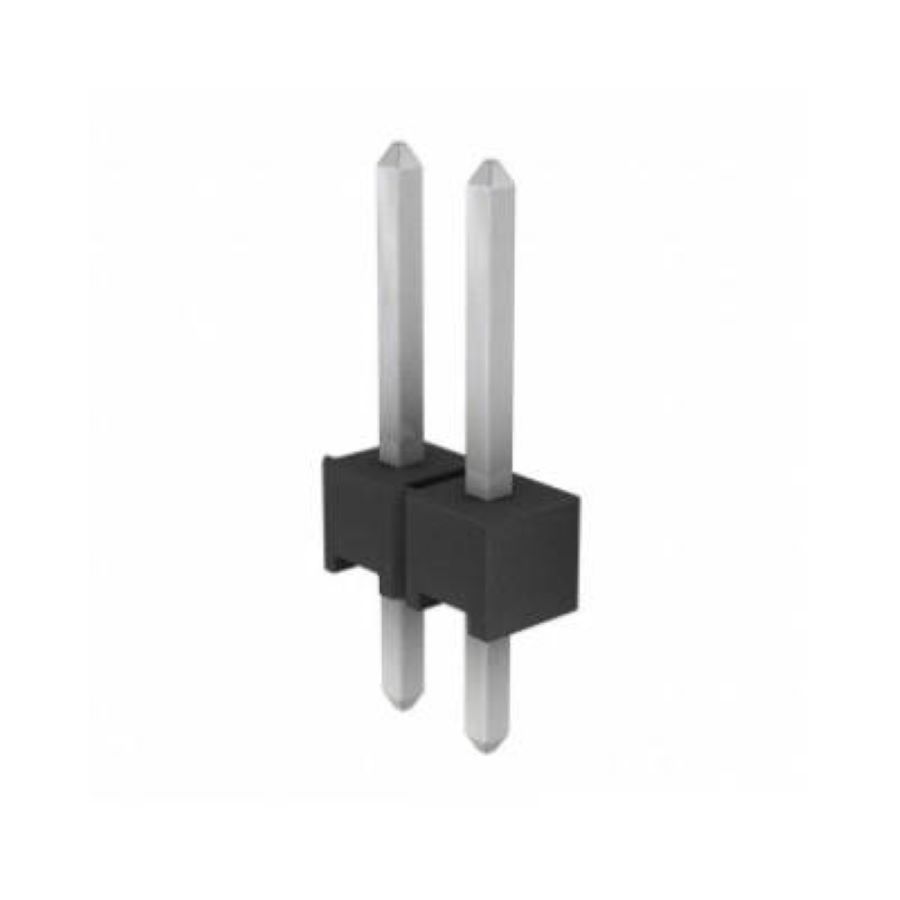

Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 4.67 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Depth | 2.34 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 2.29 mm |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Header, Breakaway |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6002 mm |
| Contact Gender | Male |
| High Temperature Housing | Yes |
| Mating Post Length | 5.84 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 2.29 mm |
Stock: 7181
Distributors
pcbx
pcbxUnit Price$0.16244
Ext.Price$0.16244
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16244 | $0.16244 |
| 10 | $0.14448 | $1.44480 |
| 50 | $0.13103 | $6.55150 |
| 100 | $0.11883 | $11.88300 |
| 500 | $0.11358 | $56.79000 |
| 1000 | $0.10857 | $108.57000 |
| 3000 | $0.10624 | $318.72000 |
| 5000 | $0.10396 | $519.80000 |
| 10000 | $0.10174 | $1017.40000 |
